Supports BT5.2 (including LE 1M, 2M)
Supports standard Class-1, Class-2, and Class-3,
Can output 4 PWM channels, 1 UART channel, and 5 IO ports
External antenna
Standby power consumption 3uA
File Download

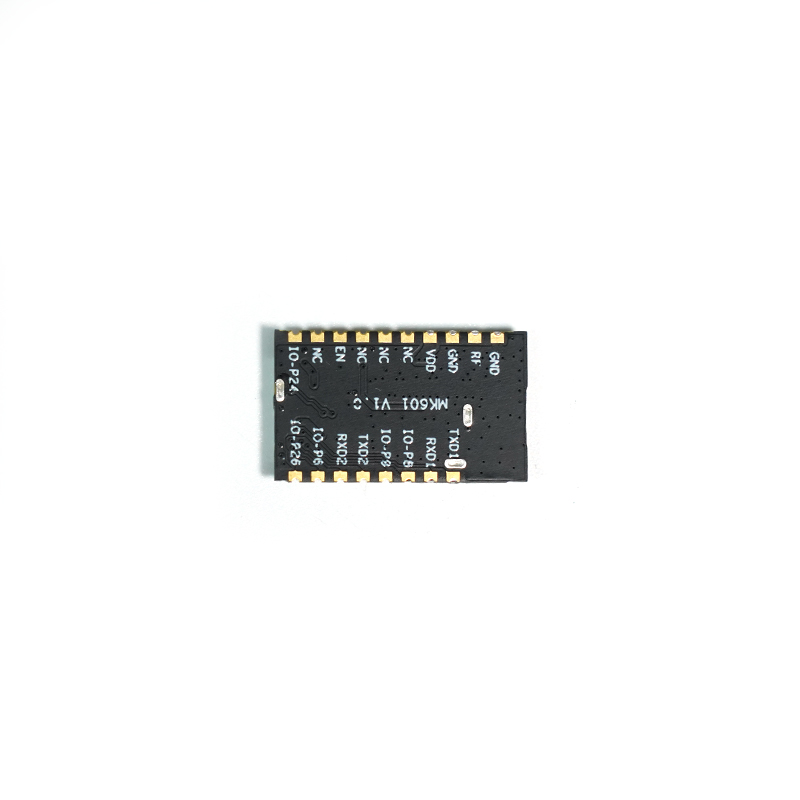

| BT Module（MK601） | ||
| Operating Voltage | 2.7~5.0 | V |
| Operating Current | 26mA(MAX) | A |
| Working temperature | -20℃~+60℃ | |
| Working life | 30000 | H |
| Communication Protocol | UART | |
| Structural appearance | 22.5mm*13.5mm*1.mm | |
| Conformal Coating | NC | |
| function characteristics |
Support BT5.2
Supported Standards) Class-1、Class-2 and Class-3， PWM X4 UART X1 GPIO X5 (external antennas) (Power Consumption):3uA |
|
| Application scenarios | (Home Lighting Fan Light | |
| Regional certification | 3C ,SRRC | |
